GB3KA
Galston, Ayrshire
GB3KA - RB3 433.075/434.675MHz 1750/103.5Hz (G) Access
Echolink available on GB3KA
Node Number 349393
(Echolink Command Summary)
This was the first UHF repeater in the groups stable and has now been decommissioned. It was sited 6 miles ESE of Kilmarnock town centre, near the village of Galston. Its coverage area was intended to be South Ayrshire, but results showed that places as far away as Drumchapel in NW Glasgow and Dailly near Girvan are able to access this repeater. The repeater ran 10 watts into a 5db dual-band colinear.
The repeater GB3WA at Dalry is expected to cover some of the area previously covered by GB3KA.
Technical Information
Status - On Air - Temporary Antenna Installed following further mast failure (2012)
Mast Replaced June 15th 2008 after February Failure - See Below

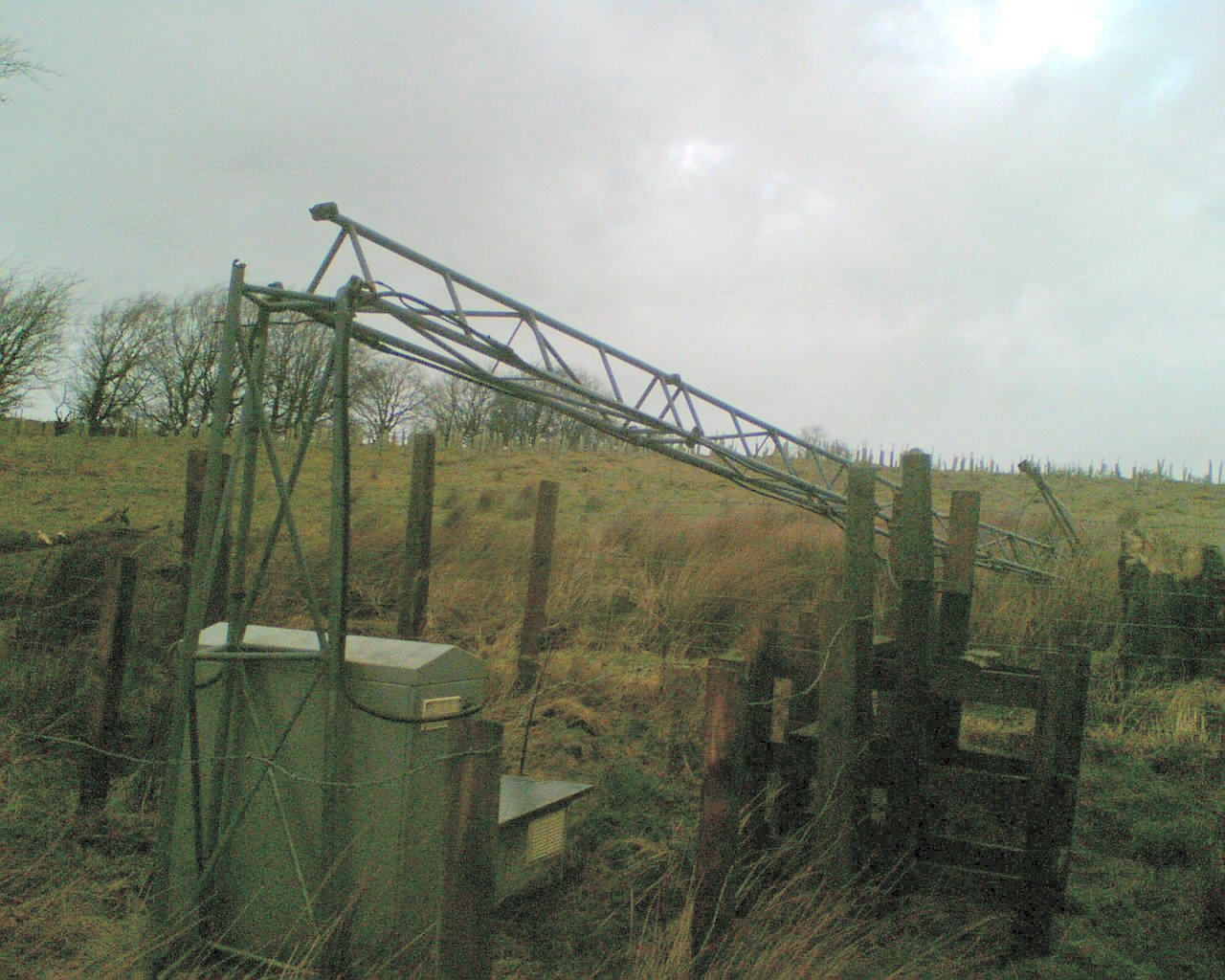

KA Mast after the High Winds on 29/02/08
GB3KA - Specifications
RF Platform - Storno CQF
Tx Power - xxW into duplexer
Tx Power - xxW out of duplexer
Duplexer -
Logic -
Aerial -
Feeder - Andrew’s LDF550
Talk-thru time -
Ident - ‘GB3KA’ in morse.
Access - 1750Hz for greater than 0.5 secs
but no greater than 4 secs or 103.5Hz CTCSS.
Coverage Details - RSGB ETCC Website
